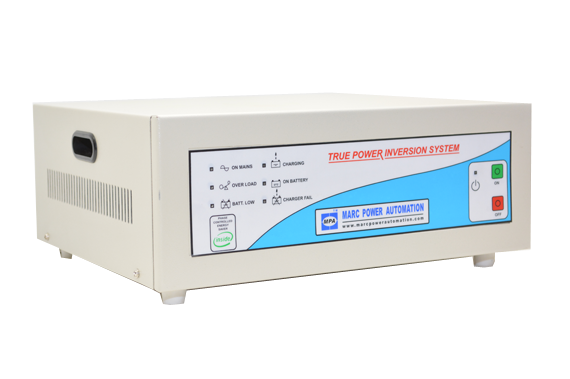

Inverter

Technical Specification
INPUT
Voltage : 160 V - 270 V AC Single Phase
Frequency : 50 Hz + 5%

OUTPUT
Power Rating : 5 kVA
Output Wave :Step wave (Suitable for all electric appliances)
Output voltage & Regulation : 230 V AC + 1.5% (from no load full load)
Power Device & Technology : mosFET based PWM controlled

BATTERY
Battery Charging : CVCC (Constant Voltage Constant Current) From 160 V Mains Input

GENERAL
Efficiency : < 95 % (inverter mode)
Protections : Overload 150% for 1 minute
Higher / Lower input Voltage, Short Circuit,
Earth fault, Over charging & Deep Discharging
Display : Light Emitting Diode Type
Indications ( Visual ) : Mains,Charging, Inverter, Overload, Battery Discharge
Indications ( Audible ) : Battery Discharge, Overload
Noise : Less then 42 dB at 1.5-meter distance
Operating Temp. & Humidity : 0 - 60 deg. calicos & 95% ( Non Condencing )
